Brass Drain ball Valves with drain plug 1/2"-2"

The Inline Ball Valve 1-2 Inch BSP Female With Drain-Off Quarter Turn is a versatile and efficient valve that is essential for controlling the flow of water in various applications. Designed with convenience and reliability in mind, this ball valve features a quarter turn mechanism that allows for quick and effortless operation.

Constructed with durable materials, the body of this valve is made of nickel plated brass, ensuring long-lasting performance and resistance to corrosion. The ball itself is made from steel, providing strength and durability to withstand high pressure and temperature conditions.

This ball valve is available in four different sizes – 1, 1 1/4, 1 1/2, or 2 inch BSP female thread on both ends, allowing for seamless installation and compatibility with various plumbing systems. The female to female connection ensures a secure and leak-free connection.

One of the standout features of this valve is the inclusion of an additional drain-off valve on the side. This drain-off valve allows for easy draining of excess water or for periodic maintenance, without the need to shut off the main water supply. This added convenience saves time and effort, making this valve a practical choice for any plumbing system.

With a maximum working temperature of 120°C and a maximum working pressure of 1.6 Mpa, this ball valve is suitable for a wide range of applications. Whether you need to control the flow of hot or cold water, this valve will provide reliable and precise performance.

Overall, the Inline Ball Valve 1-2 Inch BSP Female With Drain-Off Quarter Turn is a versatile and reliable valve that offers efficient control of water flow. Its durable construction, convenient drain-off valve, and compatibility with various plumbing systems make it an excellent choice for both residential and commercial applications. With this valve, you can ensure optimal performance and peace of mind.Solid brass full bore ball valves

Handle Choose

Item NO	Thread	Size	Handle
HX5710	Female x Female	1/2"-2"	Iron/304 stainless steel handle

● The products according with EN13828 standard produce

● Minimum and maximum working temperature -20℃ to +100 ℃

● The working pressure is PN25/362.5 psi

● The body with standard ball in big flow rate.

● No Obstruction Tight sealing Reliable . Working Medium: Water Oil



Material list

NO.	Component	Material
1	Boby	Forging Brass
2	Seat	P.T.F.E
3	Ball	Brass
4	Bonnet	Forging Brass
5	Stem	Brass
6	O-ring	NBR
7	Filler	P.T.F.E
8	Press cap	Brass
9	Handle	Steel
10	Nut	Steel
11	Nozzle Core	Brass
12	Nozzle body	Brass
13	O-ring	NBR
14	Nozzle nob	Brass
15	Gasket	P.T.F.E
16	Plug	Brass



HX5701 Technical Parameters

Size	L	H	DN	D	weight	Carton
1/2"	54	48	14.8	85	232	64
3/4"	60	51.5	20	85	295	48
1"	72	62	25	114	505	32
1-1/4"	86.5	69.5	32	114	705	16
1-1/2"	98	80	40	140	978	12
2"	112.5	90.5	50	140	1600	8



● Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

● Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

● Valve Ball: Smooth and wear resisting, with good sealing performance.

● Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

100% Test by air pressure 6-8bar on production line, give you the 100% guarantee.



Quality Control

Hot forge

Our brass valve is produced by forging, through forging the valve product strength is greater, no porosity, can effectively prevent the leakage of the valve body.

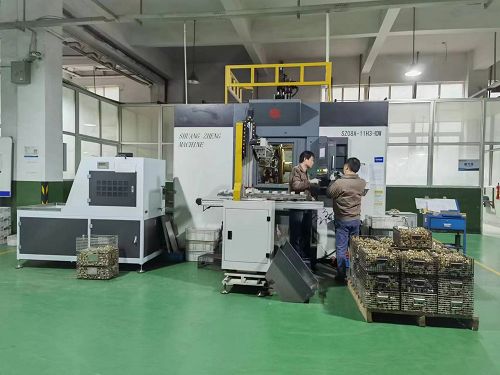

CNC Machining

Our products are processed by precision CNC machine tools, with high machining accuracy up to 0.1 micron. We have machining centers to meet customers' requirements for products with high coaxiality



Machining Inspection

In our machining process, each size needs to be strictly tested. Workers will conduct a self-inspection of their products every 2 hours, and QC will conduct a workshop inspection every 2 hours to ensure that the size of products fully meets the requirements of the drawings



Assembly Room

Our assembly shop USES the assembly line, the result of teamwork can guarantee the output of a large quantity of products.100% of the products on the production line need to pass the leak test. We use the pressure of 6-8bar to test each product. Only after passing the test can the products be packed into cartons.



FAQ

1. Can I have a sample order for valve?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

2. Do you have any MOQ limit for valve order?
A: YES, But low MOQ, for quantity you should to contact with us and to negotiate.

3. How to proceed an order for valve?
A: Firstly let us know your requirements or application.you can give me our item number and size and your order quantity. If there is not the same products, you can give me your drawing.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the price and places deposit for formal order. confirm the sample(if need)
Fourthly We arrange the production and delivery.

4. Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.



5. What is your delivery time.

A: production time needs 35-45 days,if the first time confirm samples, should be discussion.
